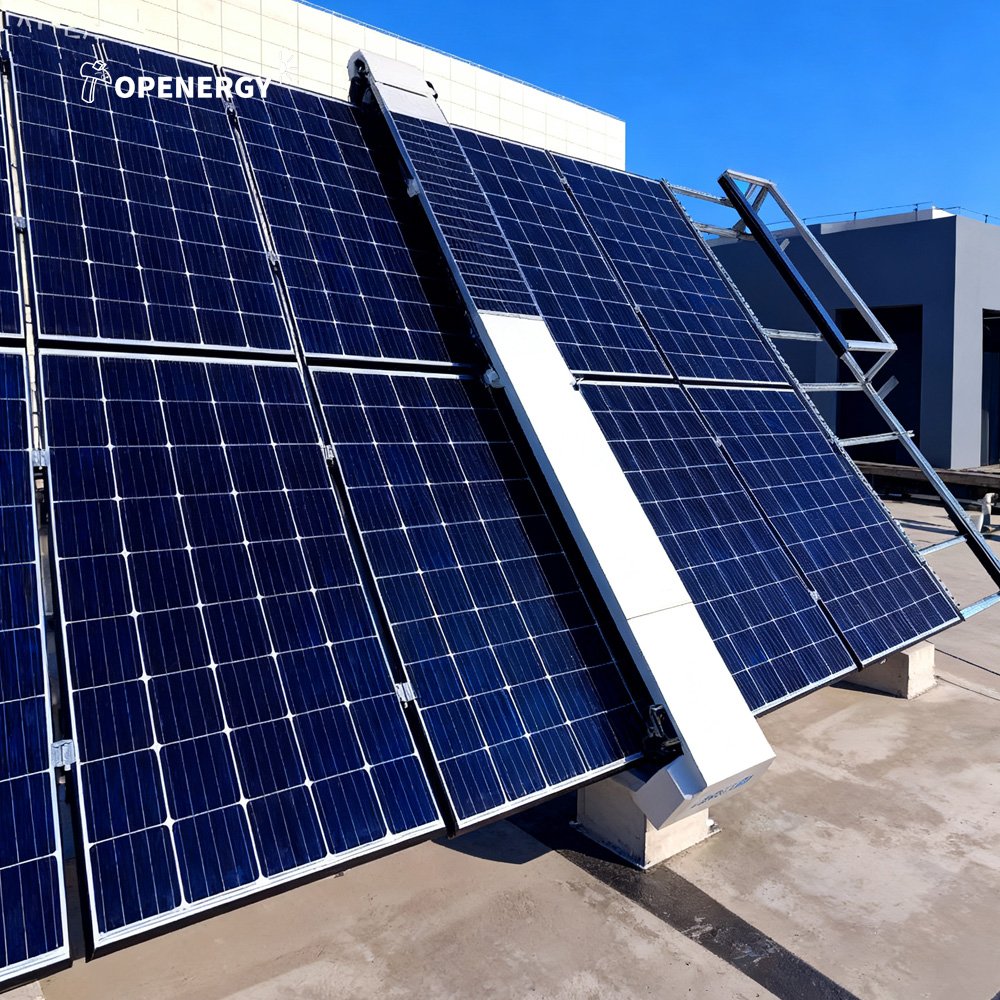

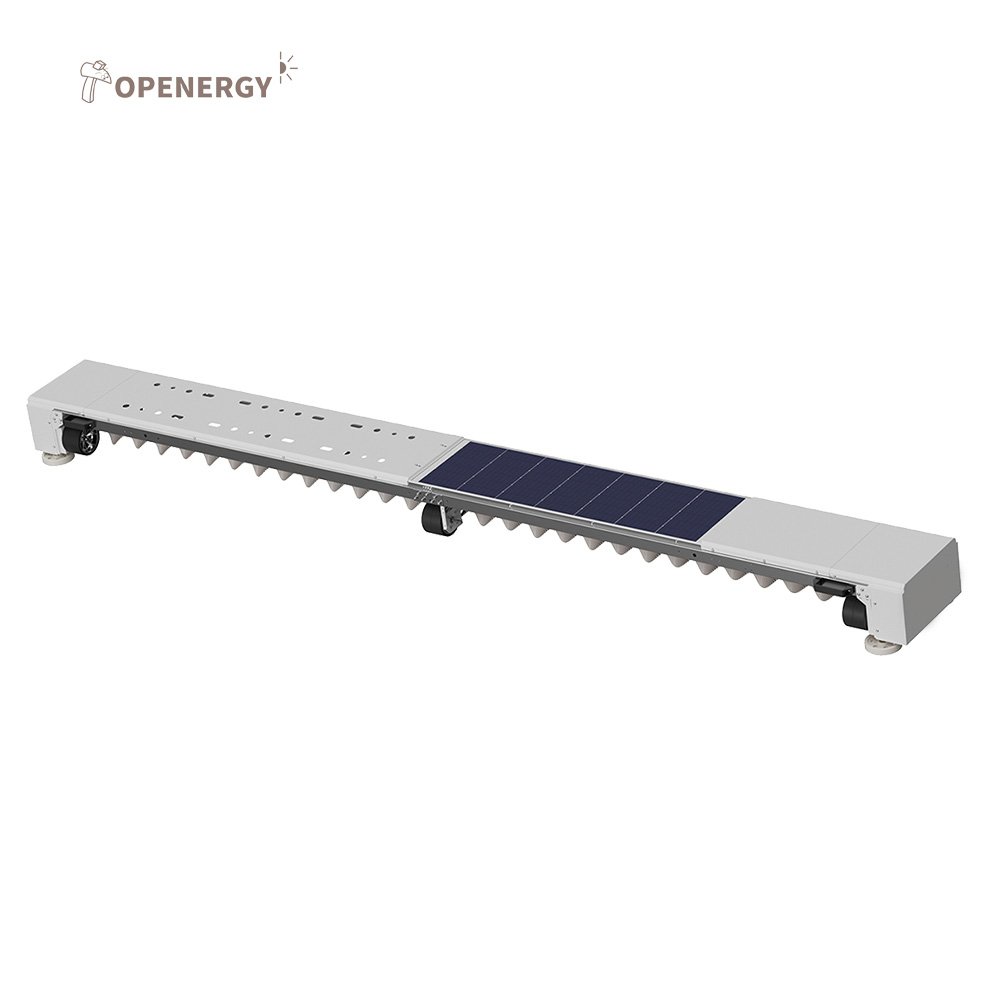

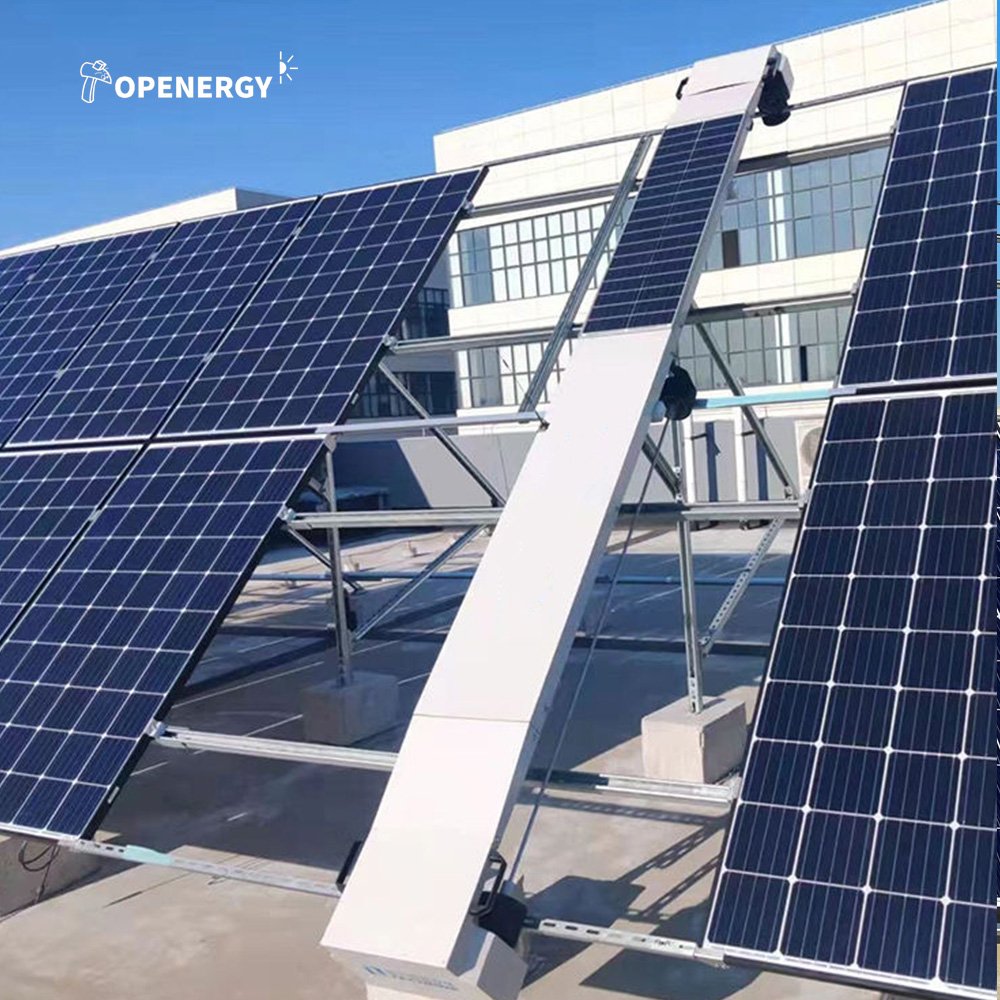

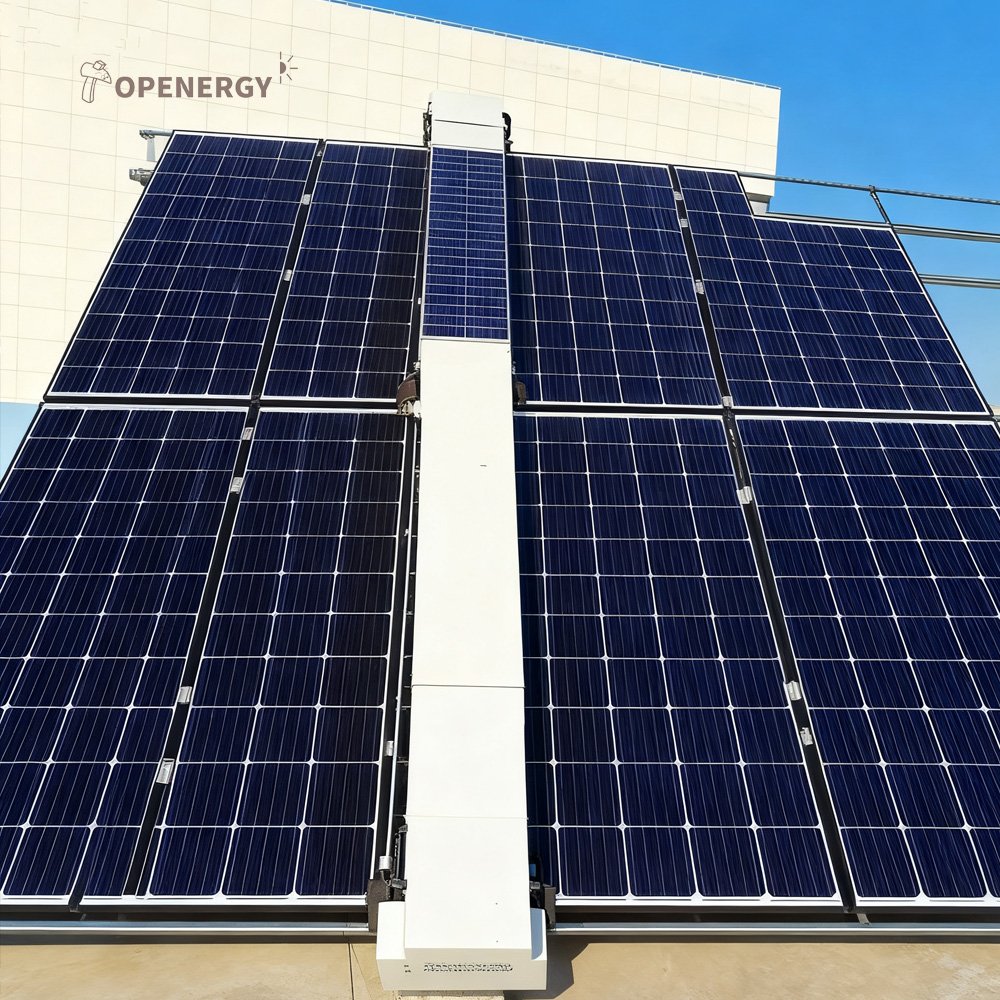

WSE-R20 Hanging Solar Cleaning Robot

This cleaning robot is an intelligent panel cleaning robot developed specifically for large and ground concentrated photovoltaic power plants. Equipped with an autonomous working system, it uses precise brush technology to clean the dust, dirt, and residue on the surface of the panel, ensuring that your photovoltaic module system operates at maximum efficiency.

SHUTTLE CAR

  • Intelligent cleaning with remote control

  • Unique brush structure removes various contaminants

  • Lightweight body, zero damage to components

  • Adaptive posture during operation, strong obstacle-crossing ability

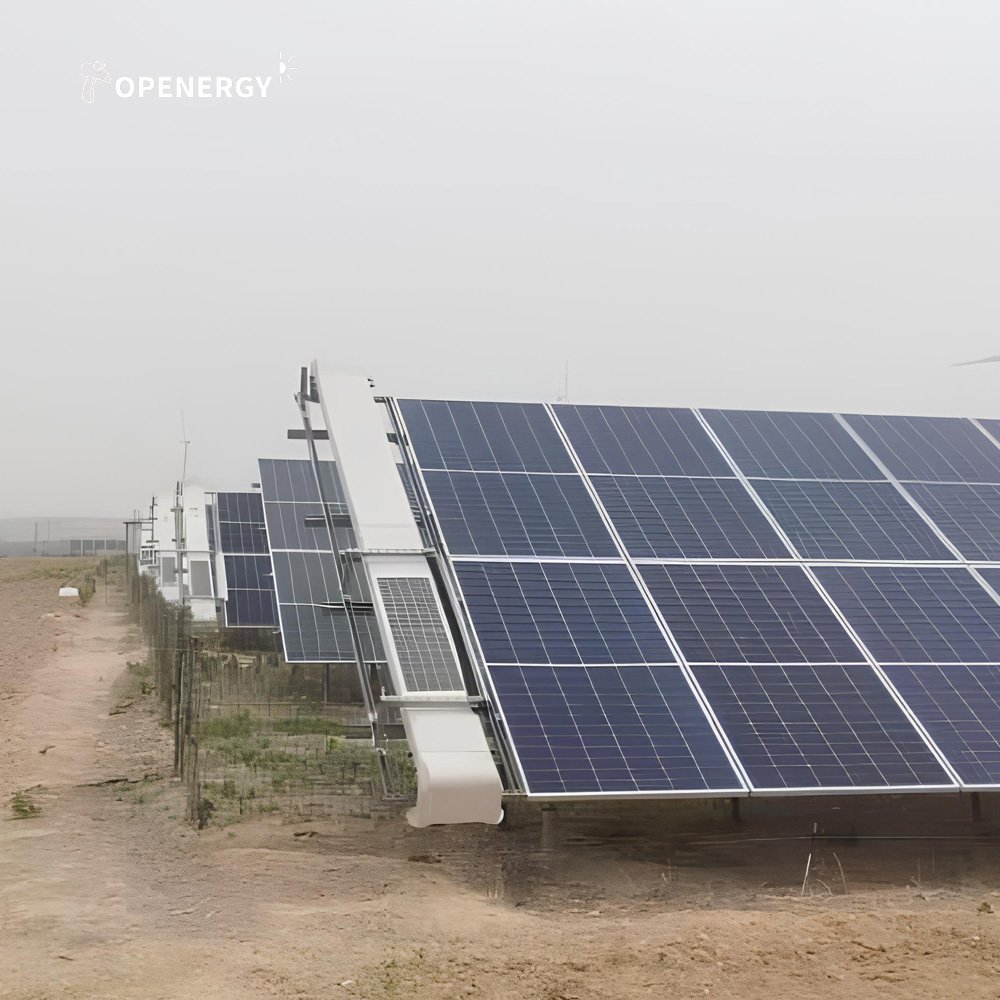

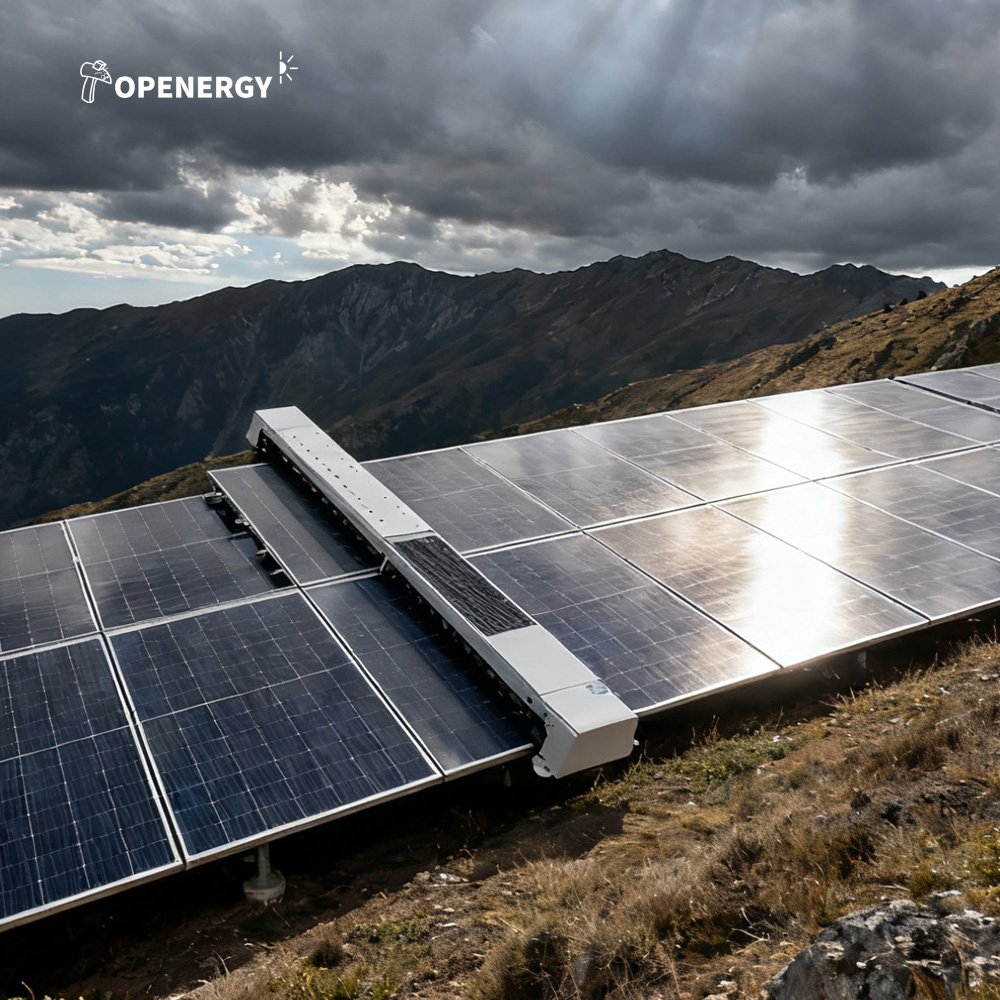

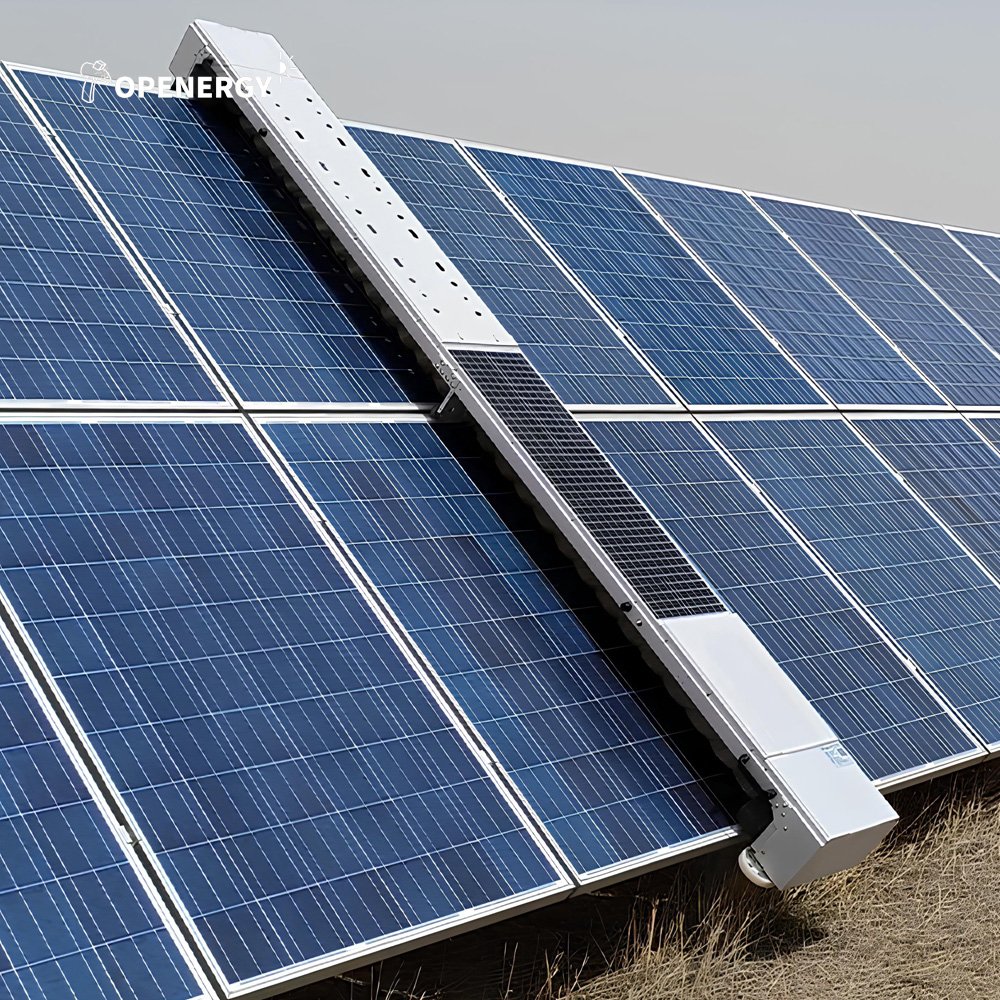

Application Scenarios

Technical Parameters

Technical ParametersSpecifications
Product ModelWSE-R20
Size(1900-5000)×445×246 (mm)
Weight≤49 Kg
Payload<14.8 Kg/m²
Walking Speed0~24 m/min
Brush Speed150 RPM
Walking Motor Index30W+60W 50K
Brush Motor Index60W 20K
Max. Vertical Module Dislocation25 mm
Max. Horizontal Module Dislocation40 mm
Max. Climbing Gradient< 20°
Module Installation Angles0~50°
Working Temperature-30~80℃
Brush IndexPBT, brush diameter 0.2mm
Max. Cleaning Distance4000m
Washable PollutantsDust, iron filing, sand grains, bird droppings, etc
Lithium Battery Index24V/20 Ah
Low Battery ProtectionCan be set
Charging Panel Power70 W
Charge MethodSelf-owned PV plate/Centralized charge
Signal Control4G/Lora
Remote ControlCloud platform control/Cellphone App
Cleaning ModeOn-site direct control/Long-distance/Set time
Self-run Deviation Correction FunctionOwned
Self-protectionAbnormal voltage and current procedure

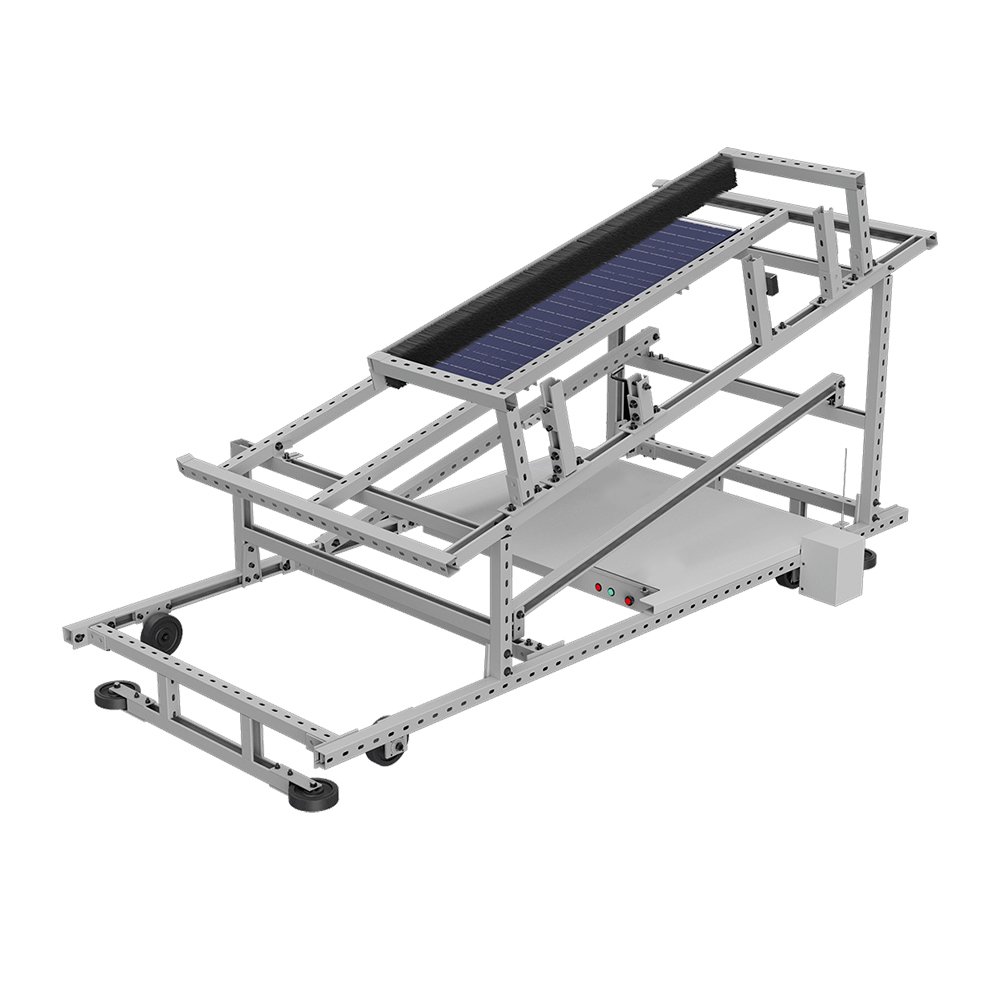

WSE-R20A HANGING SOLAR CLEANING ROBOT SHUTTLE CAR

The WSE-R20 hanging solar cleaning robot shuttle automatically moves the cleaning robots from one row to another, ensuring that the cleaning process continues uninterrupted and efficiently, greatly reducing the cost of configuring one robot for each row of components; Thanks to its intelligent positioning system, it can save a large area of time and labor.

Technical ParametersSpecifications
Robot dimensions(1900~5000)445246 mm
weight≥ 55 kg
speed0~3 m/min
climbing capacity<25°
panel installation angle0 ~ 50°
positioning accuracy±3 mm
protection gradeIP65
working environment temperature-30°C ~ 60°C
service life25 years
