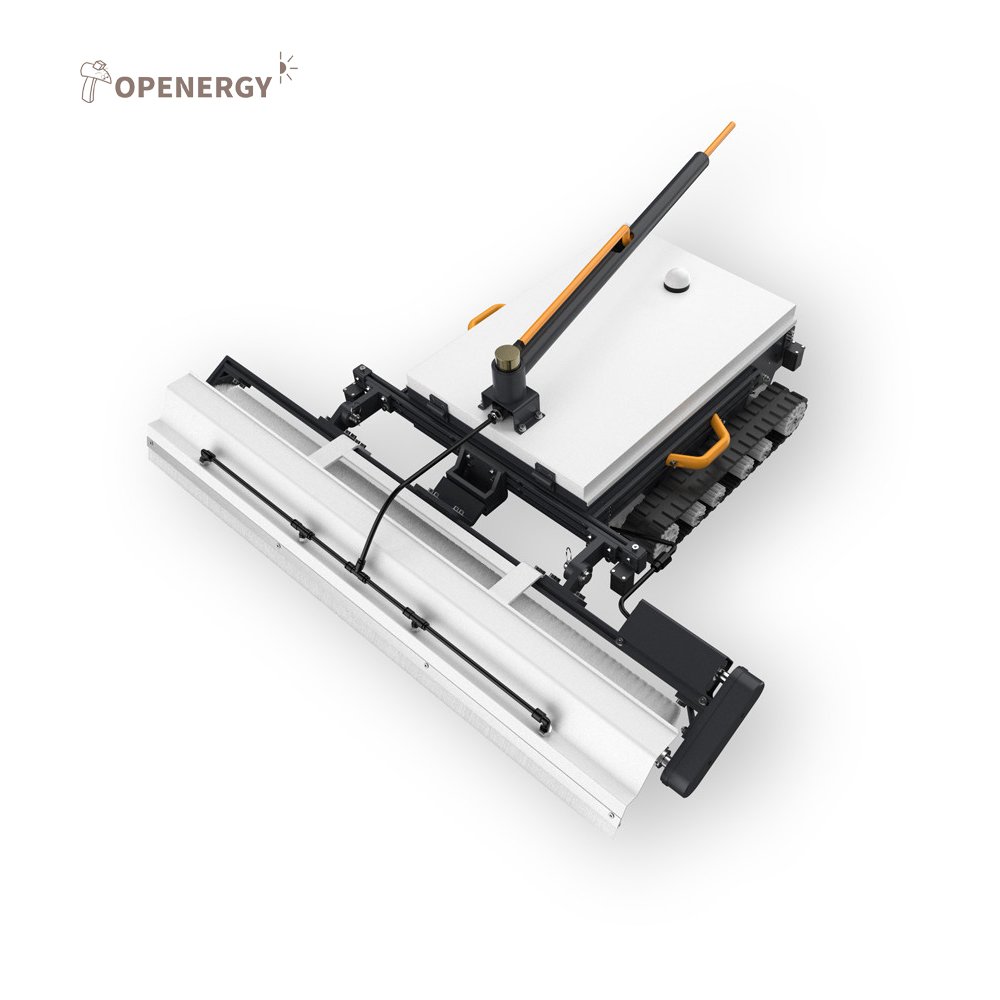

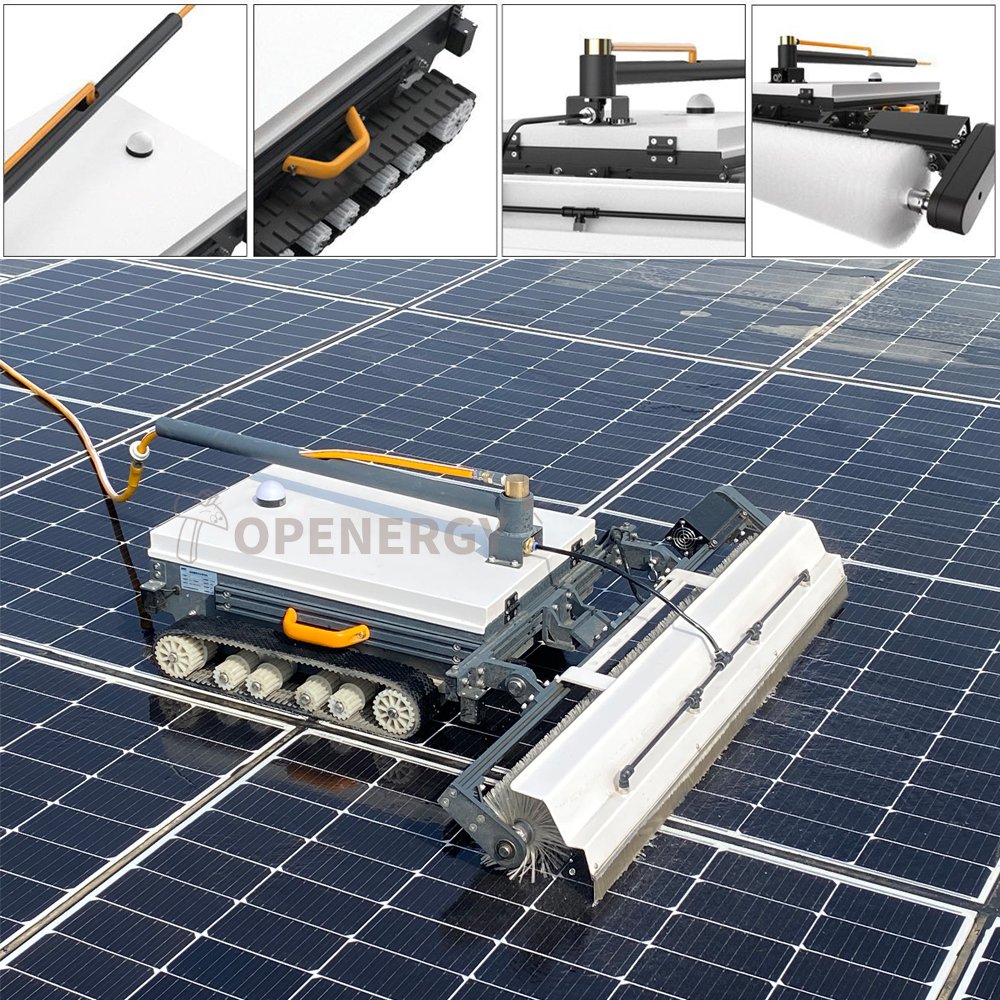

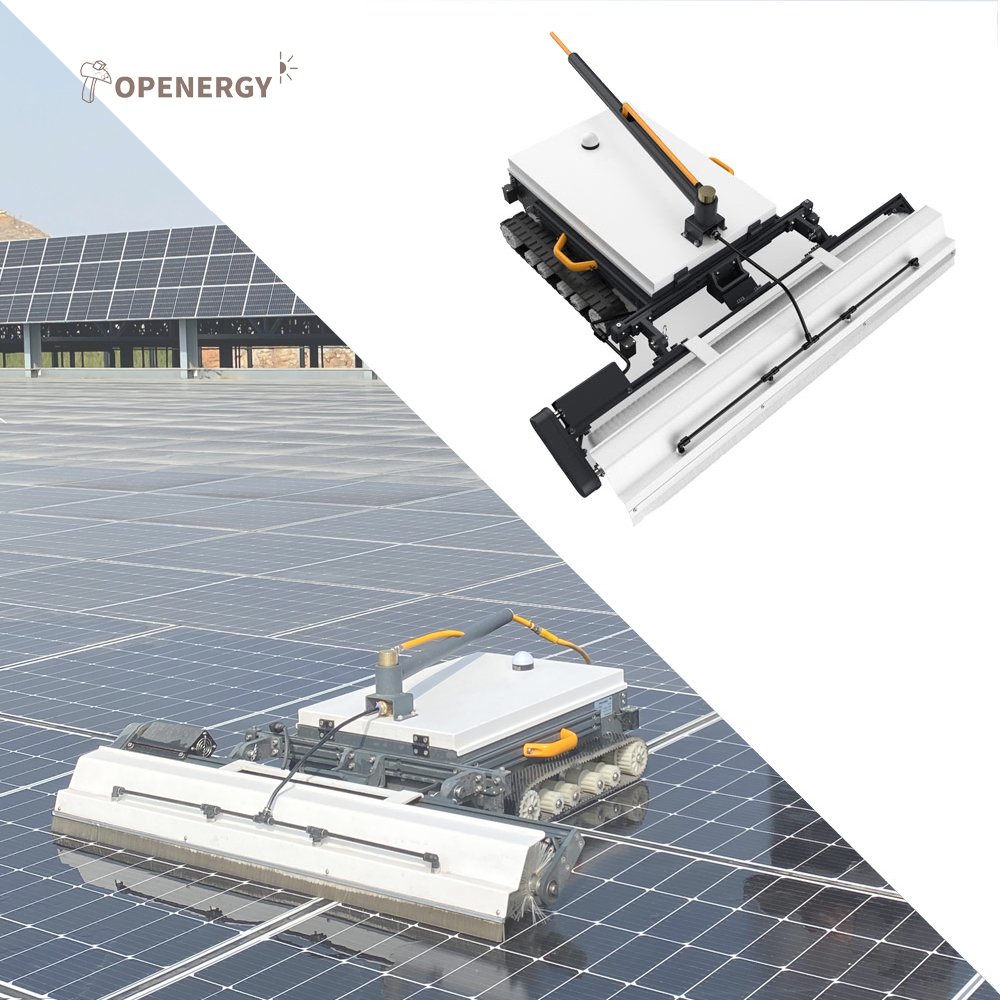

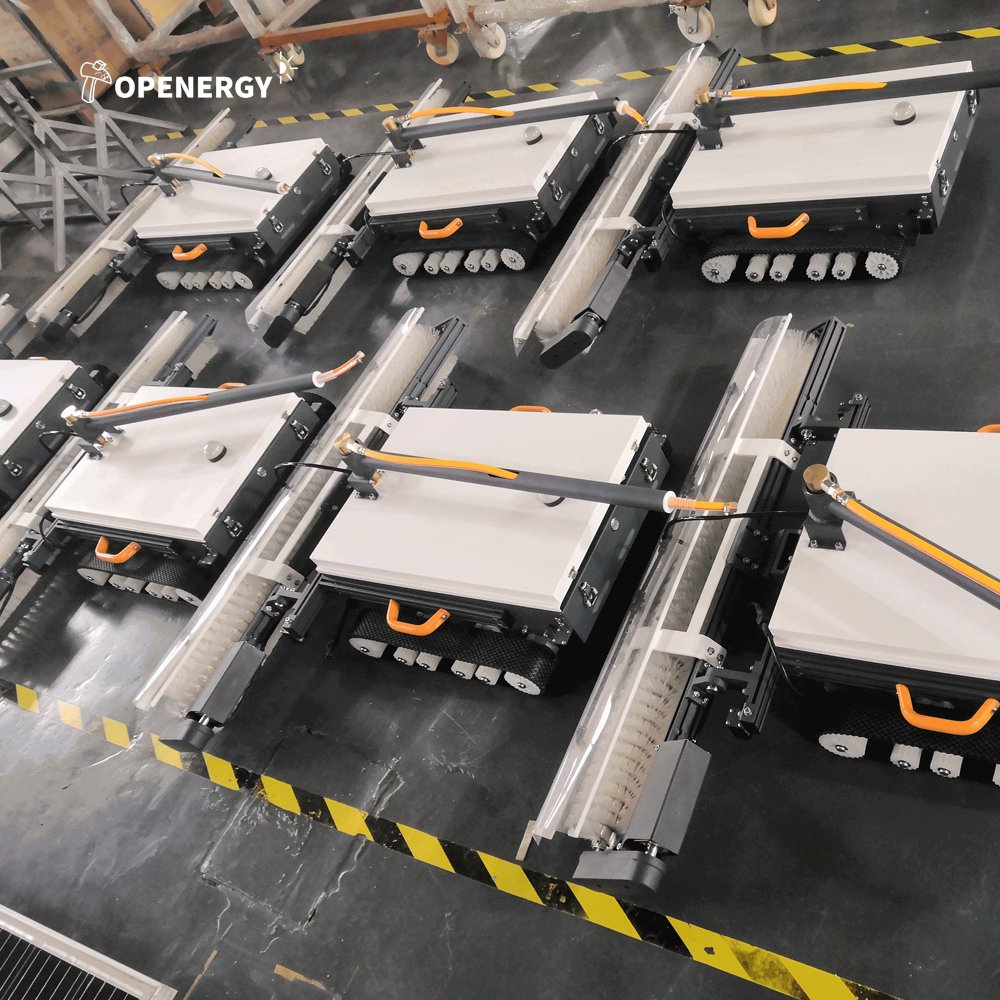

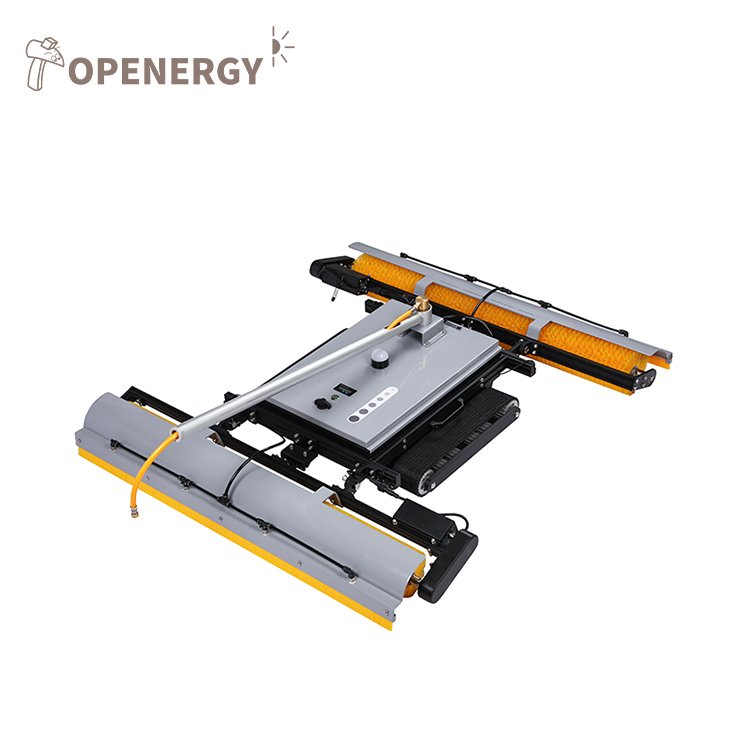

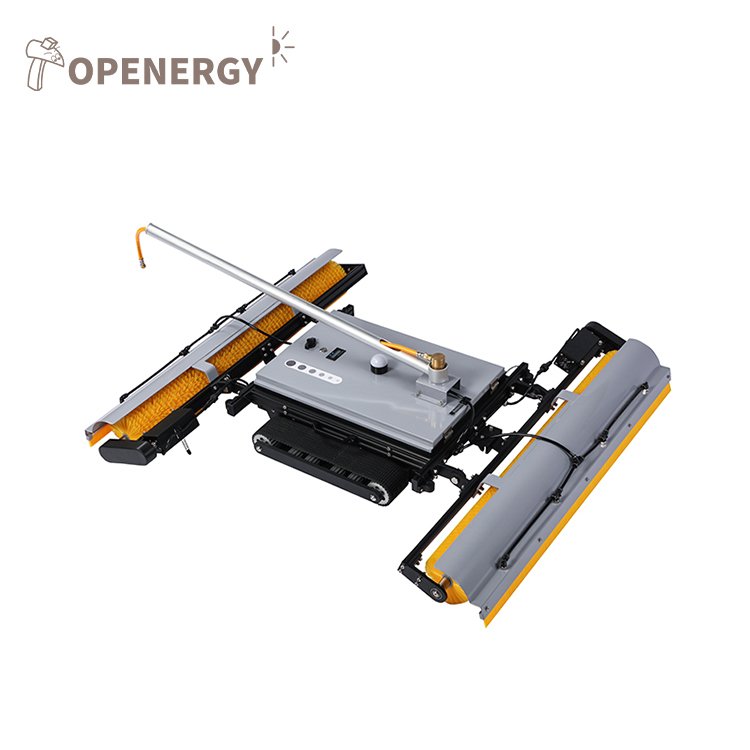

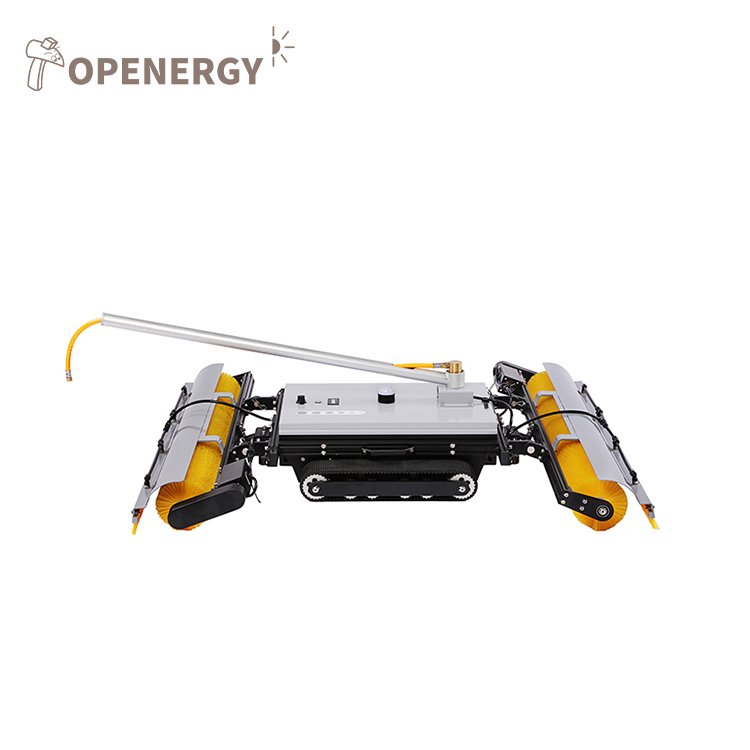

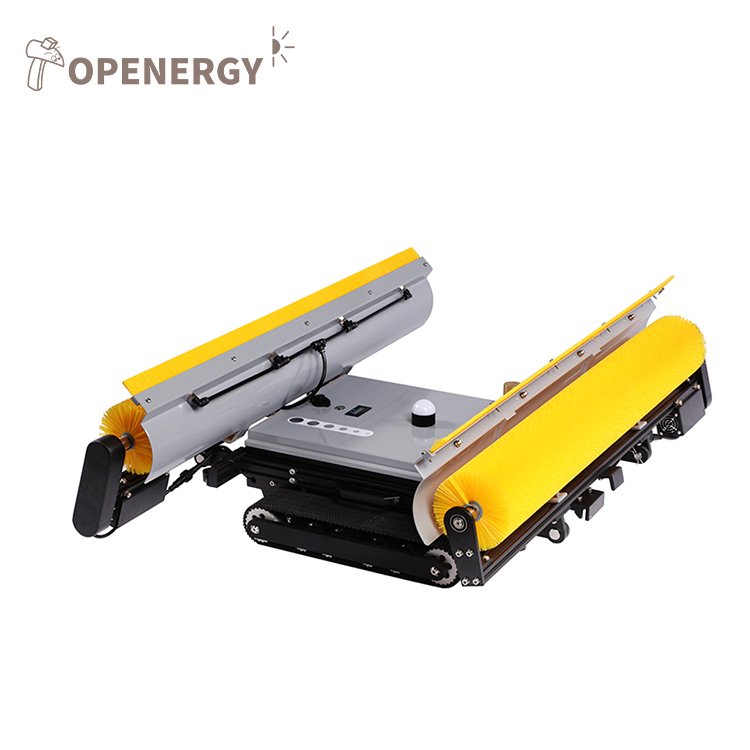

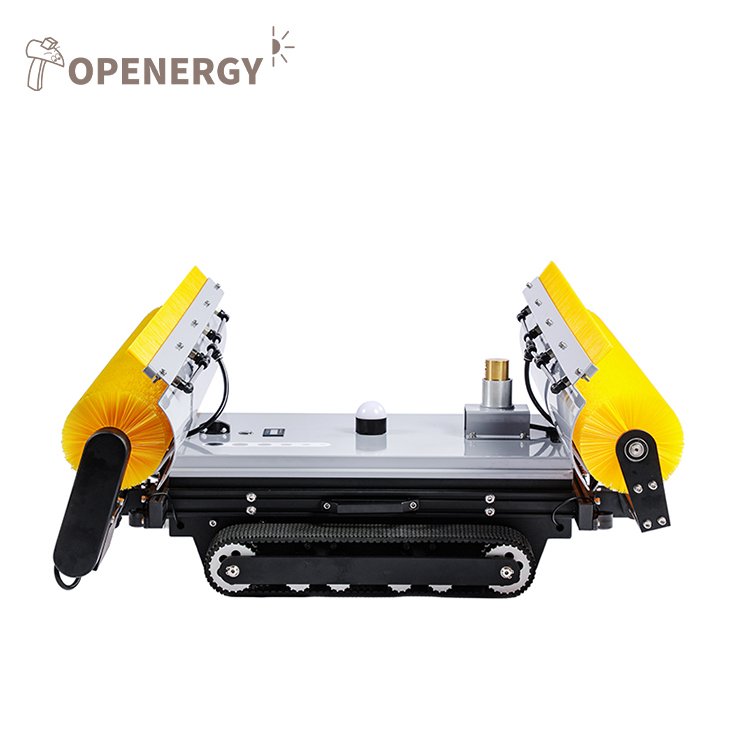

WSE-R01B Remote control crawler solar panel cleaning robot

The remote control crawler photovoltaic cleaning robot is designed for environments in photovoltaic power stations where manual cleaning or telescopic poles are ineffective. This specialized equipment offers remote-controlled cleaning, tailor-made for challenging conditions.

Edge stop to avoid risk

Anti-falling system is not afraid of falling if it is manipulated at will.

150-200m Remote control

With a remote control distance of up to 150~200 meters, making it more flexible to use.

Ultra-long battery life

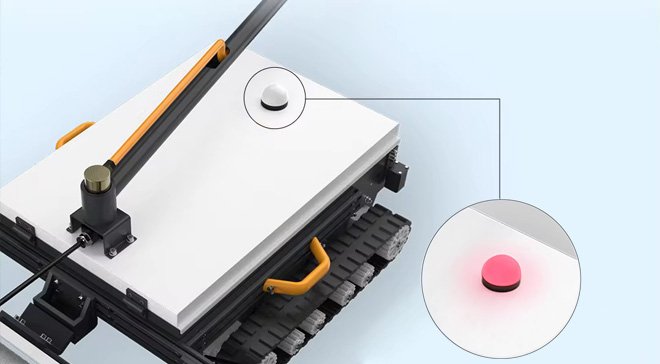

6-8 hours battery life Low battery reminder not afraid of halfway.

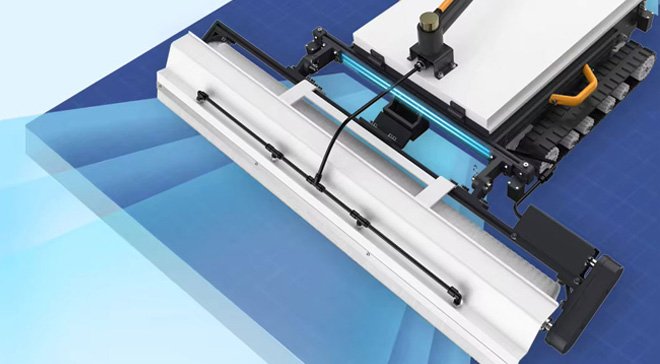

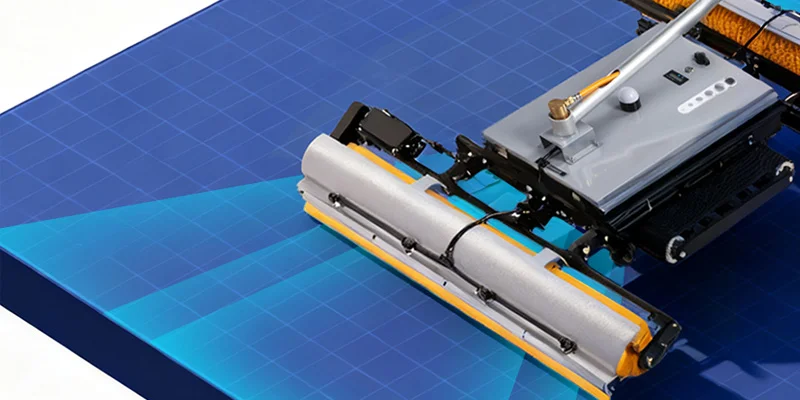

Anti-Fall System: Ensures Safety Regardless of Control Conditions.

The WSE-01RB photovoltaic cleaning robot features an anti-fall system with four high-precision sensors. It automatically stops at the panel edge, alerting users with indicator lights. Only the remote can then drive it away safely, preventing falls and ensuring safety.

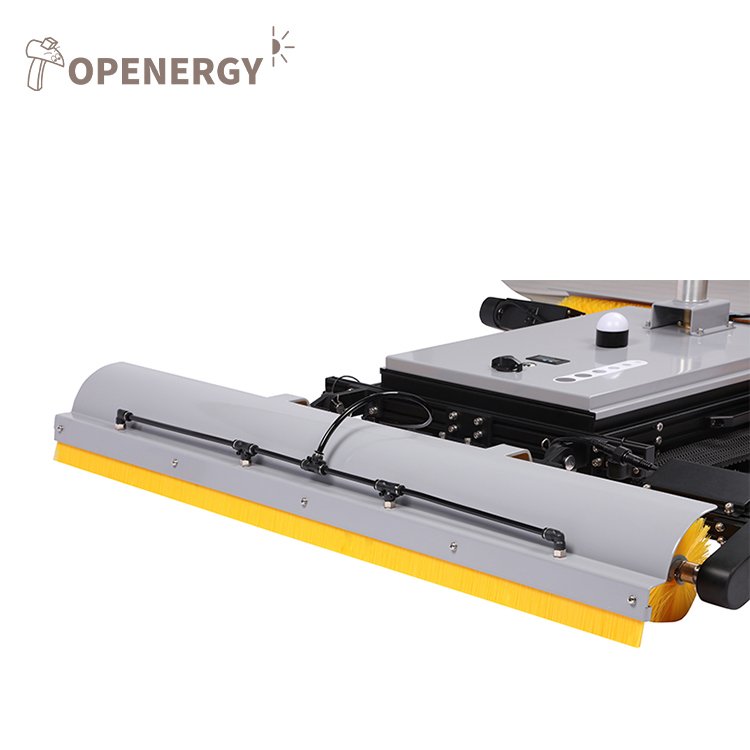

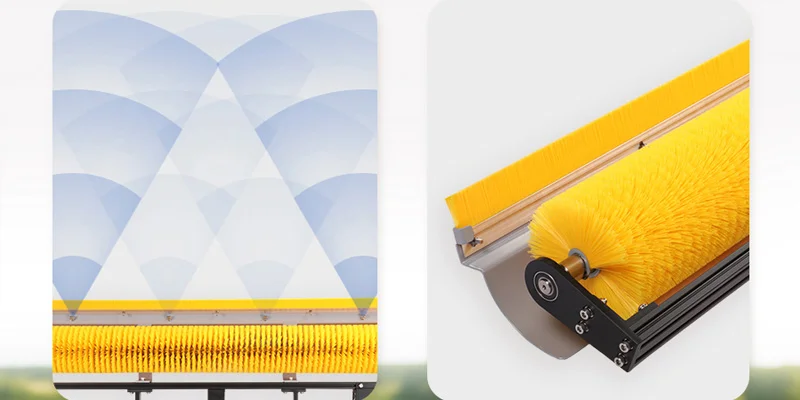

Dual-Brush PV Cleaner: 95% Efficiency Boost & Dry/Wet Modes

Dual brush heads boost cleaning efficiency by 95% vs a single brush. Equipped with multi-point water spray, the dual roller brushes form a uniform fan-shaped water curtain to quickly remove contaminated water, cleaning 1.5-2MW PV plants daily.

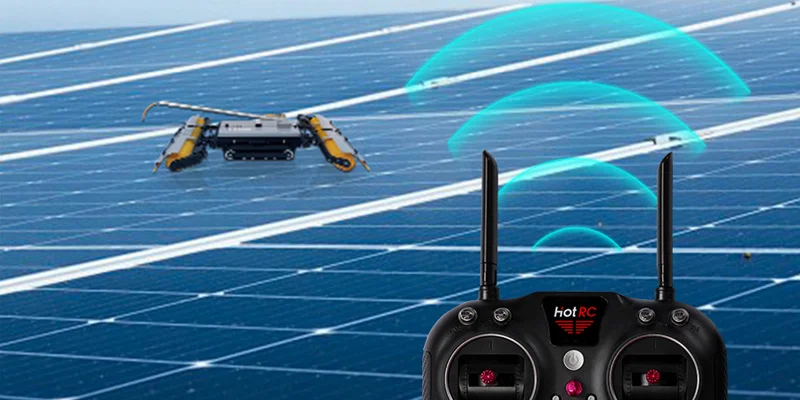

200m Long-Distance HD Multi-Gear Control: Safer PV Cleaning

Staff cleaning on PV panels/roofs has safety risks! HD visual remote enables precise 150-200m control, with signal monitoring, battery display and low-voltage alarm. Supports cruise control, independent single/double brush control & stepless speed control.

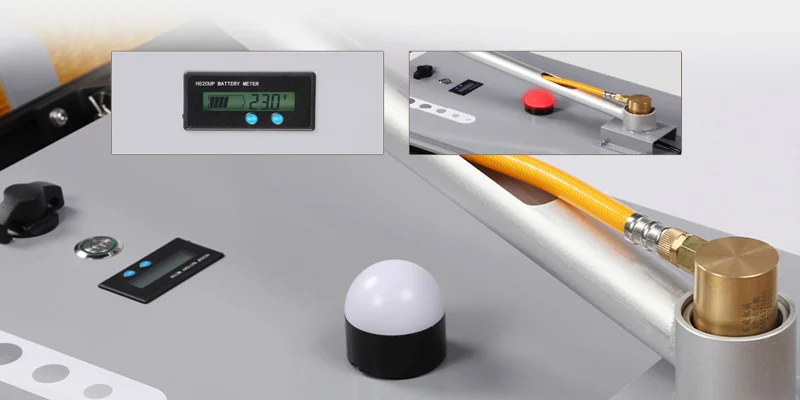

High-Capacity Lithium Battery (Dual Optional) for PV Plant Operations

High-capacity lithium batteries (dual optional) handle PV plant operations easily. Battery charging status is visible, with real-time power display on the shell. Dual 24V26Ah ternary lithium batteries offer 6-8h runtime (dual brushes).

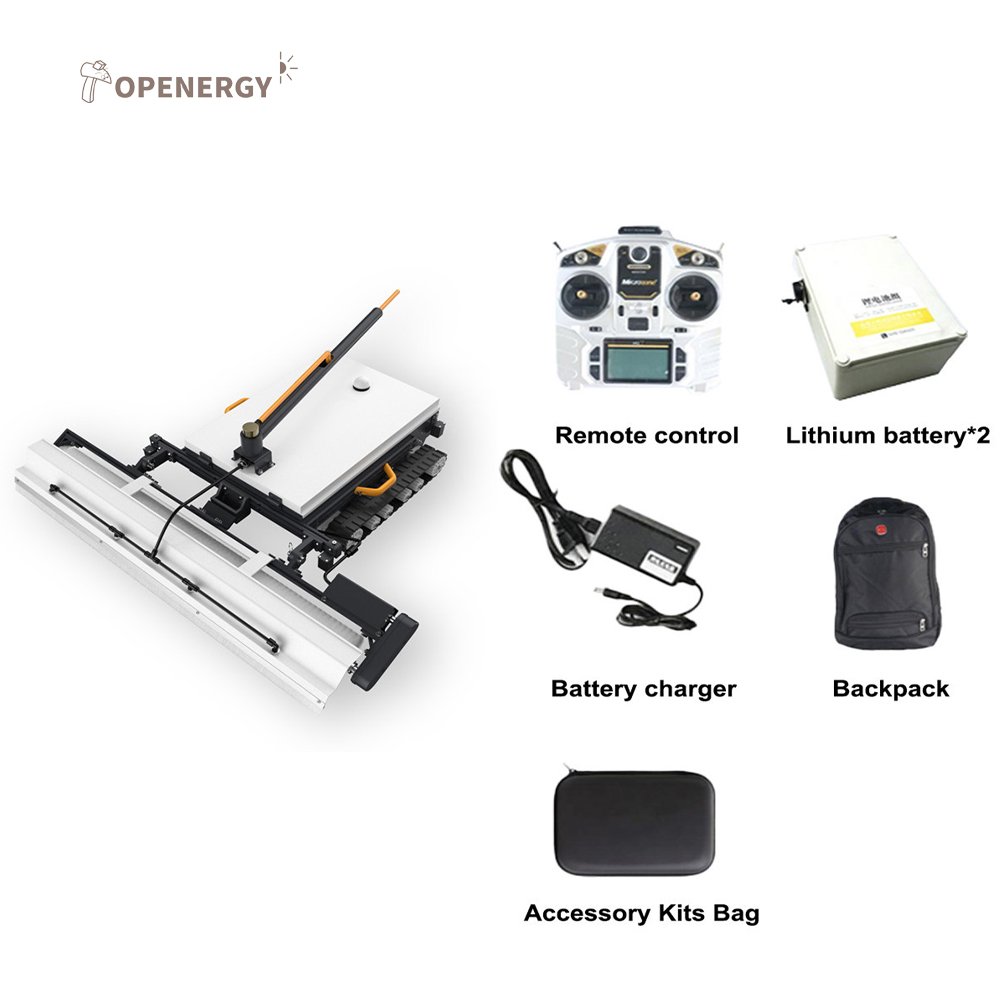

Solar Panel Cleaning Robot Packing List

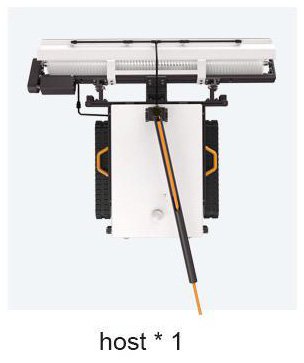

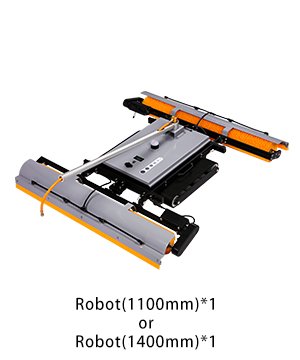

Host

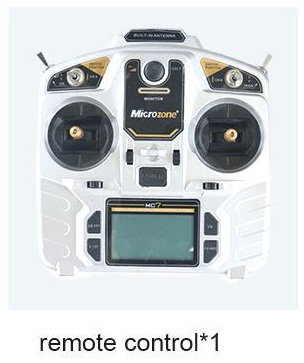

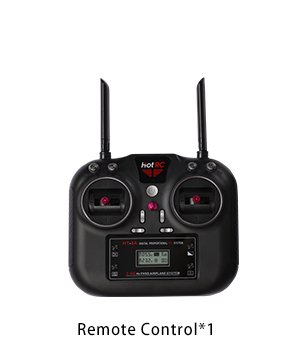

Remote Control

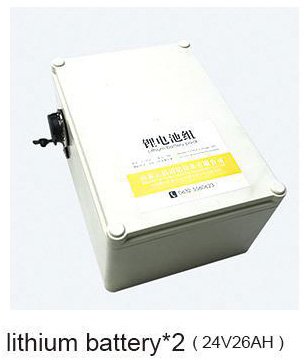

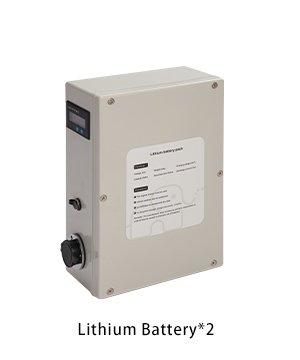

Lithium Battery

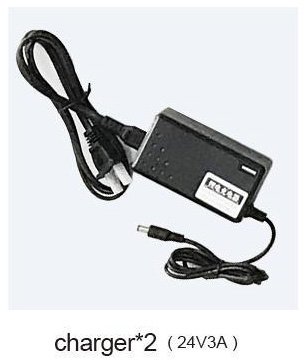

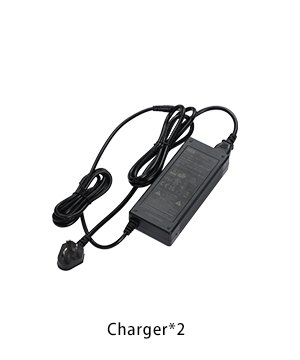

Charger

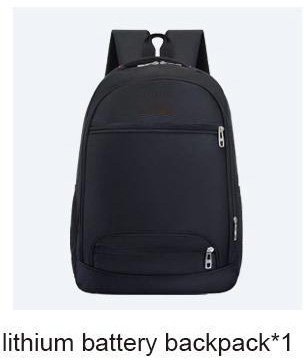

Lithium Battery Backpack

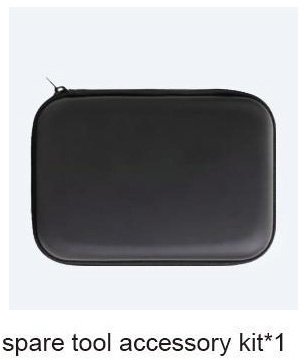

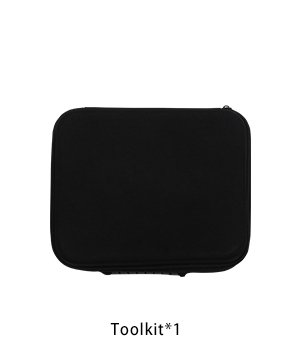

Spare Tool Accessory Kit

Product Parameter

Brush Material PBT
Cleaning Type Dry / Water
Operating Temperature Range -20°C to 50°C
Working mode DC motor controls robot drive and brush rotation
Working Angle ≤20°

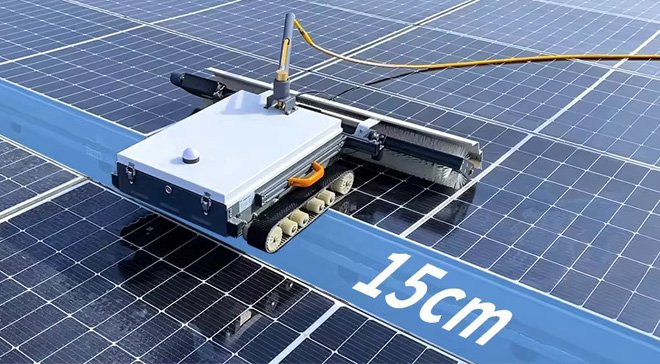

Maximum Span ≤20cm
Operating Voltage 24V
Power Supply Lithium Battery (22.2-24V) *2
Runtime 6-8 hours
Ldling speed 368 RPM
Cleaning width 1110mm, 1400mm(Optional)
Travel speed 20M/min
Water consumption Max 1.84L/min
External dimensions 79×74×49cm
Equipment weight 48.3kg (including battery)
